Pendulum Clock Suspension Springs with Stamped Hole
German-made pendulum clock suspension springs in brass and steel, featuring a stamped hole for attaching an extension. Available in five sizes for compatible pendulum clock movements.
Available Sizes
| Number | Part Code | A – Width | B – Attachment Distance | C – Spring Length |
|---|---|---|---|---|
| 1 | S5557 | 5mm | 16mm | 17.5mm |
| 2 | S33945 | 5mm | 19mm | 19mm |
| 3 | S5556 | 5mm | 20mm | 20mm |
| 4 | S5555 | 5mm | 26.5mm | 26mm |
| 5 | S33947 | 5mm | 30mm | 30mm |

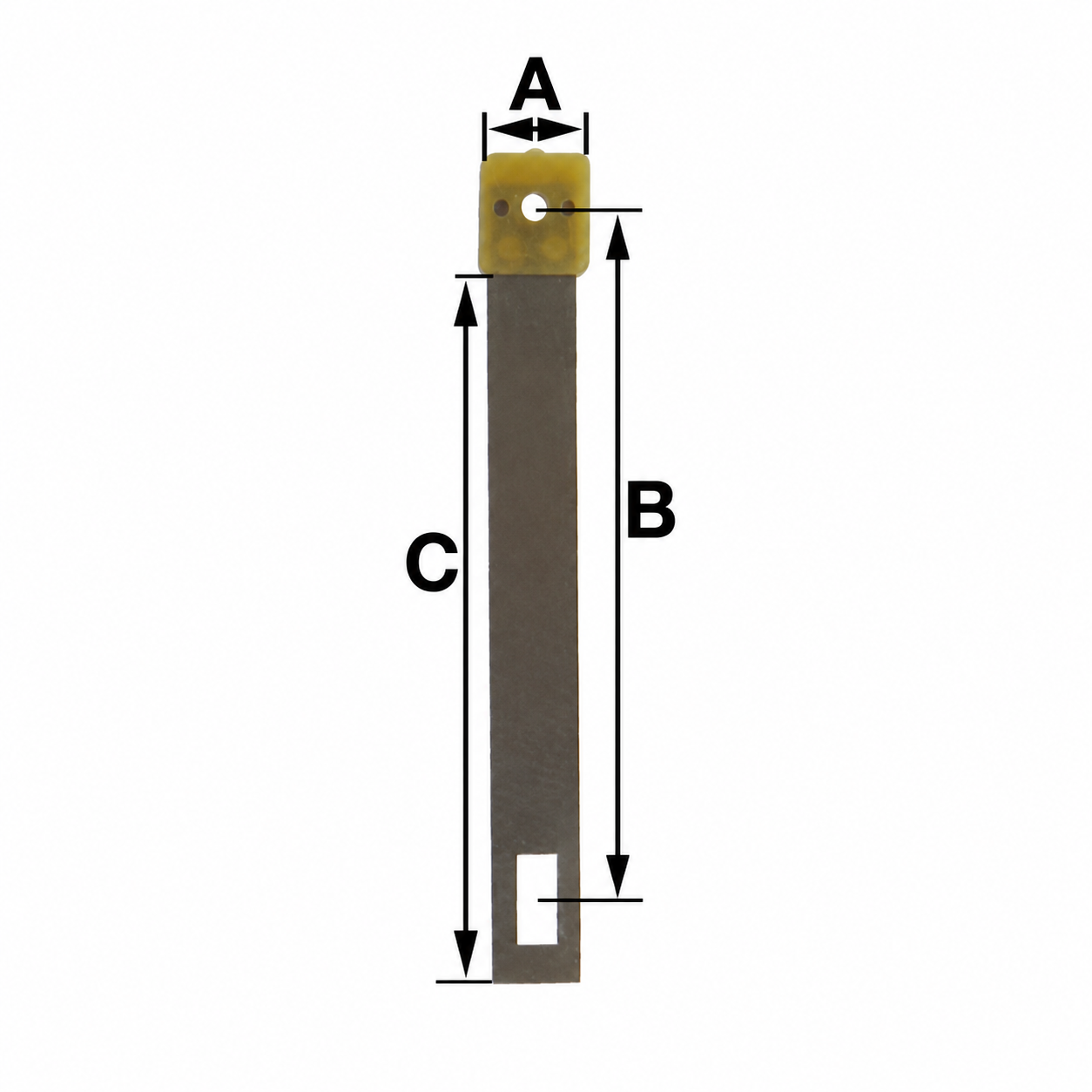

Measurement Guide
Refer to the labelled product image when selecting your suspension spring:
- A: Width.
- B: Distance between the top pin point and the extension attachment.
- C: Actual spring length.
Dimensions are listed in B × A × C order where applicable. Please compare all measurements and attachment details with your existing spring before purchasing.
Explore More Suspension Springs
Explore our range of suspension springs and clock restoration parts to find a suitable replacement for your pendulum clock.
